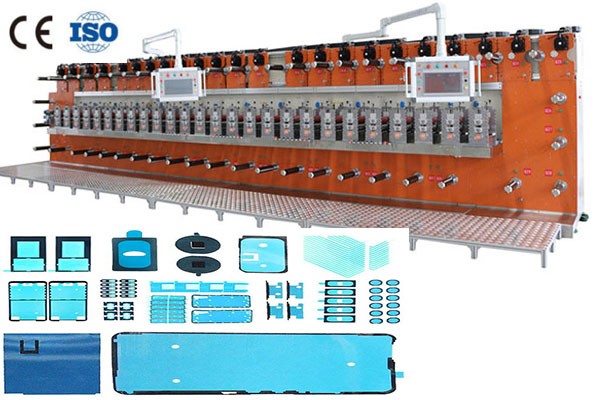

FMT250-26B Industrial Die Cutter for Screen Pringting Frame Adhesive

Mode: FMT250-26B
Stations: 26 Stations / 52 Spindles
Width range: 150/250/350/550/650mm
Max speed: 70m/min
Cutting precision: ±0.1mm
Dimension: 9400*1420*2350mm
Weight: 10.5T
Certification CE & ISO
Quick-change modular various design


Product Information

FMT250-26B Industrial Die Cutter for Screen Frame Adhesives, increase the electric eye tracking, one machine dual-use, 4 times tracking, CCD automatic alignment and other functions, to reach the domestic leading level; Suitable for protective film, single and double side adhesive, copper aluminum foil, foam, adhesive products and other materials die cutting processing.


1. Basic information

Machine model


No. of stations


Width range


Rated speed


Die precision


Material form


Roll material


Hobbing pitch


Material diam


Operator interface


Rated voltage


Rated power


Machine weight




2. Machine description

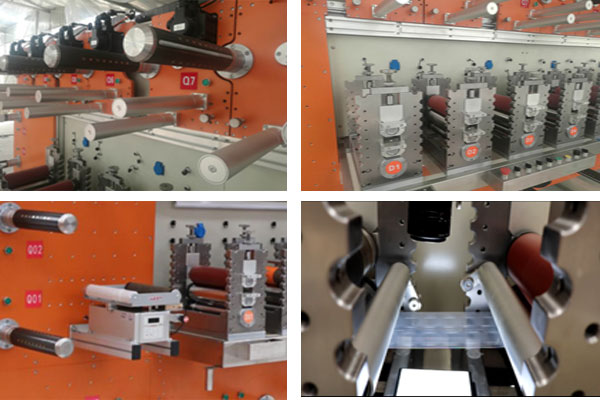

1)ALL cutter holder's movements are controlled by JAPAN Omron servomotor with enough torsion ,stable acceleration and deceleration, precision can be ±0.05--±0.1.

2)  All unwind & rewind shafts are driven separately by servo motors. The unwinding, rewinding, straight & reverse rotation are more flexible and controlled by high sensitivity tension sensor shaft's feedback to ensure smooth running.

3)  It can save more 200 kinds of SOP data, improve standard level, and reduce dependence on Operator's experience and reduce more than 60% material waste

4) Main unwind EPC system can stabilize the material feeding into blade holder

5) Movable auxiliary unwind shaft

6) Fracturing detecting machine stop or alarming to reduce material waste.

7) Machine has the function of asynchronous laminating which can save material.

8) Color code electric eye tracking system can meet the demand of position precision of produce printing product.

9) The main operation interface adopts touch panel, with picture display for easy operation. Keyboard, mouse and hand touch are all available.

10) CCD testing system can test position precision all the time during the whole process and then feedback to PLC which send orders to servo motors to adjust position.

3. Application

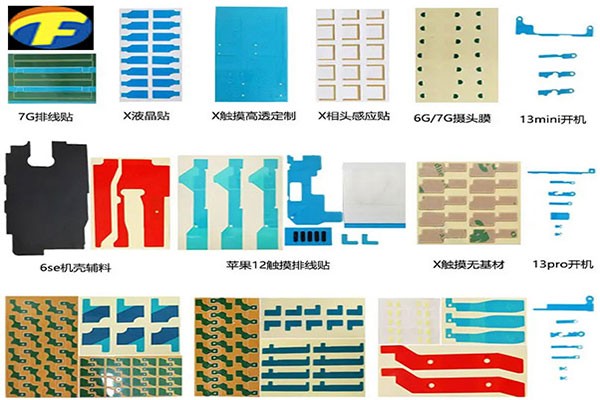

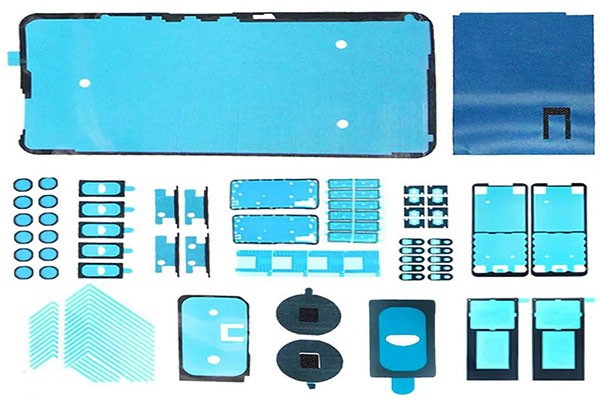

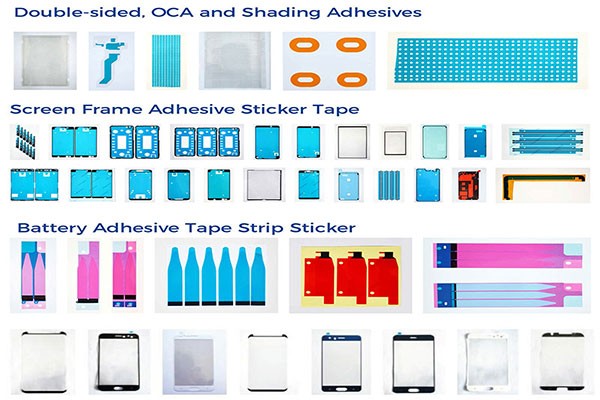

 FMT250-26/52 is suitable for multi-station set position die cutting, laminating, This machine is applicable for adhesive tape, protection film, foam, mesh cloth, aluminum and copper foil, back light module, flexible circuit board, medicine and hygiene field, etc.

Widely used in electronic products and printing and packaging die-cutting industry. Electronic products, including: mobile phones, laptops, PDSs, digital cameras, audio.

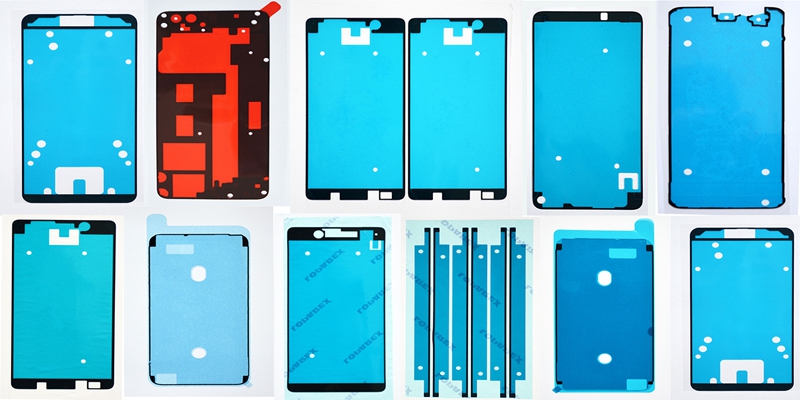

Screen Frame Adhesives.jpg

4. Packaging


5.  After-sales

1) Engineers be dispatch to customers place for training and debugging

2) One year free warranty (except consumables), life paid maintenance and overseas service

3) Appointed account manager to help solve any problems at any time.

6. Other services:

Customized/ Outsourcing Service, OEM/ODM

Fumart provides a complete range of die cutting solutions, who offers not only the equipment, the spare parts, but the customized service, the outsourcing services, for those factories whose temporary peaks in production need fulfilling and uncertainty about machine investment for in-house operation


Our factory:



Q1:  How the rotary die cutting machine works in the application of Screen Printing Frame Adhesives materials?

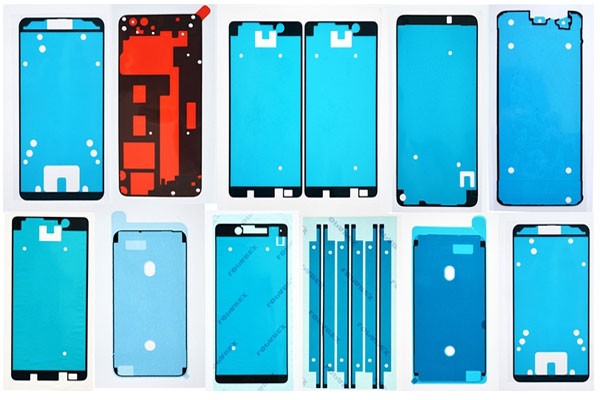

Screen Frame Adhesives are typically made of materials such as foam tapes, films, and adhesives that are used to secure silk screens to frames for screen printing. These materials need to be cut into specific shapes and sizes to fit the screen frames accurately. The rotary die cutting machine is an ideal tool for this process.

The rotary die cutting machine works by using a customized rotary die that is made to the exact specifications of the desired shape and size of the adhesive material. The material is fed into the machine through the feeding unit and is guided through the cutting station.

The rotary die, which rotates at high speed, cuts the material with precision, ensuring that the adhesive shapes are produced accurately. The waste material is then removed through a suction system or a waste removal system, leaving the desired adhesive shapes ready for use in the screen frame adhesive application.

Q2: why the Screen Frame Adhesives materials can use this die cutter, and the production process?

The Screen Frame Adhesives materials can use rotary die cutting machines because they are highly versatile and can cut a wide variety of materials, including films, foams, and adhesives, with high precision and accuracy. This method of cutting is ideal for producing large volumes of adhesive shapes quickly and efficiently.

The production process for Screen Frame Adhesives involves first designing and manufacturing the rotary die to the exact specifications of the required adhesive shapes. The adhesive material is then fed into the rotary die cutting machine, and the rotary die cuts the material into the desired shape and size.

The waste material is then removed, and the adhesive shapes are packaged and shipped to the customer. The entire process is highly efficient and allows for the production of large volumes of adhesive shapes quickly and accurately.
