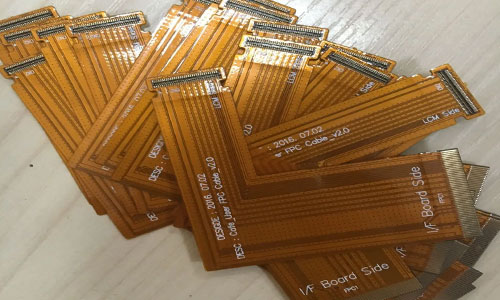

Why the rotary die cutting machine can work in flexible printed circuit boards, and what the technical specification during the production?


rotary die cutting machines are suitable for working with flexible printed circuit boards (PCBs) due to their ability to handle thin, flexible materials with precision and efficiency. Here are some technical specifications and features of rotary die cutting machines used in the production of flexible PCBs:

1. Precision Cutting: Rotary die cutting machines use high-precision rotary dies to cut through the flexible PCB material with accuracy and repeatability. The dies can be customized to create specific shapes and patterns required for the PCB design.

2. Speed and Efficiency: Rotary die cutting machines are designed to operate at high speeds, allowing for fast production rates and improved efficiency in the PCB manufacturing process. The machines can handle large volumes of PCB material and deliver consistent cutting results.

3. Material Handling: Rotary die cutting machines have specialized mechanisms for handling and feeding flexible PCB material. They can accommodate rolls or sheets of PCB material and ensure smooth and precise material feeding during the cutting process.

4. Die Options: Rotary die cutting machines offer a variety of die options to suit different PCB designs and production requirements. The dies can be made from various materials, such as steel or carbide, depending on the specific application.

5. Registration System: To ensure accurate cutting, rotary die cutting machines often incorporate registration systems. These systems use sensors and positioning mechanisms to align the PCB material with the cutting dies, ensuring precise cutting of the desired shapes and patterns.

6. Waste Removal: As the flexible PCB material is cut, the waste or excess material is automatically removed from the cutting area. This waste removal mechanism can be suction-based or employ other methods to maintain a clean cutting environment.

7. Inspection and Quality Control: Rotary die cutting machines may include inspection systems to check the quality and accuracy of the cut PCB components. These systems can detect defects or inconsistencies and reject or mark the faulty components for further inspection or correction.

8. Software Control: Rotary die cutting machines are typically controlled by software that allows for easy programming and adjustment of cutting parameters. This software enables operators to create, modify, and store cutting patterns and optimize the cutting process for different PCB designs.

Overall, rotary die cutting machines offer precise and efficient cutting solutions for flexible PCBs. They can handle the delicate nature of these materials while ensuring high-speed production and consistent quality control.
