High-Speed Coffee Filter Paper Making Machine with Rotary Die Cutter

The FMT-01 rotary die cutting machine is designed specifically for the high-speed, precision production of various types of coffee filter papers, including cone, V60, and flat-bottom styles. It supports bleached and unbleached paper rolls ranging from 50–90gsm. The system features automatic paper feeding, cutting, and stacking with minimal manual intervention.

This machine is ideal for manufacturers of disposable coffee filters, offering consistent cutting quality, reduced waste, and improved efficiency. Custom molds are available to meet unique product shapes and sizes.

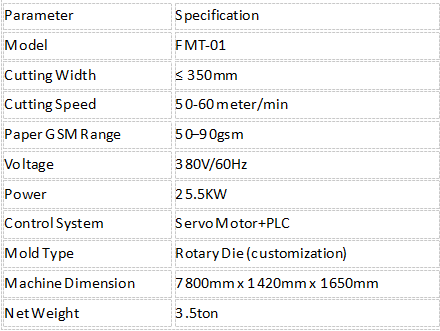

✅ Technical Specifications:

✅ Main Equipment Workflow:

Magnetic powder unwinding → C-type folding → Steel-to-steel edge pressing (two different model assemblies) → Roller die cutting (two different model assemblies) → Automatic waste removal → Finished products counted and neatly arranged via conveyor belt output.

✅ Advantages:

1.The servo motor unwinds the material, and the tension is constant. The size will not change with the change of the material roll diameter. The operation is simple, convenient and fast.

2.The equipment punching is fully controlled by the servomotor, abandoning the traditional chain drive to complete the precise positioning.

3. The material collection and stacking device adopts a superposition method, which is not affected by the speed of the equipment and can transport products without stopping.

4.Counting method: program independent algorithm control, with an accuracy of 100%.

5. One machine can produce coffee filters of different models.The knife die and the knife holder are independent separate structures. To change the product type, you only need to replace the corresponding knife die and place it manually. The replacement and debugging time is about half an hour, which saves time and effort. There is no need to replace the knife holder and knife die joint device.

6. The equipment speed can reach 60 meters per minute, and the product output is 500-700 pieces. High-efficiency customized machines can reach more than 1,000 pieces.

7. Our machine adopts imported molds, with high cutting precision, no paper scraps and weld firmly.

✅ FAQ:

1. What is an automatic coffee filter paper die cutting machine?

An automatic coffee filter paper die cutting machine is a specialized production device used to cut and shape coffee filter paper into various sizes and designs. It integrates processes such as paper unwinding, folding, steel-to-steel edge pressing, rotary die cutting, and waste removal, enabling efficient mass production of cone coffee filters and flat coffee filters.

2. Can the coffee filter paper production machine make both cone and flat filters?

Yes. Many modern coffee filter paper production machines feature dual-mold systems that allow for quick switching between cone and flat filter production. This makes it ideal for manufacturers who supply both pour-over coffee filters and basket-style coffee filters.

3. How fast can a coffee filter paper manufacturing line produce filters?

The production speed depends on the model, but high-speed coffee filter paper machines can produce up to 200–350 pieces per minute. This ensures high efficiency for large-scale coffee filter manufacturing and consistent product quality.

4. What materials are compatible with coffee filter paper cutting machines?

These machines are designed primarily for food-grade filter paper, but they can also process non-woven materials used in certain specialty coffee filters. The material thickness typically ranges from 12–40 gsm, ensuring proper filtration and brewing performance.

5. What is the warranty for coffee filter paper production equipment?

Most manufacturers provide a 6–12 month warranty for the main machine and free software updates. Molds are usually excluded from the warranty due to wear and tear. After the warranty period, service and spare parts are available at cost.

6. How does the waste removal system work in coffee filter paper manufacturing?

An automatic waste removal system collects leftover paper after die cutting and rolls it into a separate spool. This keeps the production line clean, reduces downtime, and improves production efficiency.

7. Can I customize the size and shape of coffee filters?

Yes. Coffee filter paper machines can be fitted with custom molds to produce unique shapes, sizes, and embossed patterns. This is perfect for OEM and private label coffee filter production.
