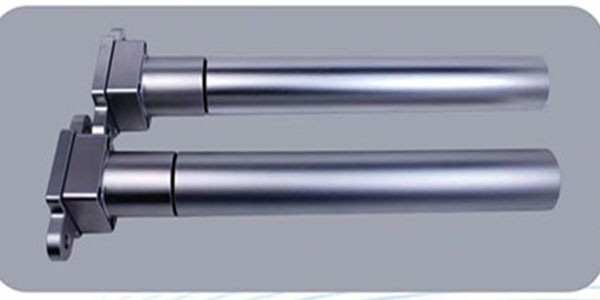

Handheld Guide Rod for Rotary Die Cutting Machine

The handheld guide rod is designed to assist operators in manually guiding and positioning machine components during setup, adjustment, and maintenance of rotary die cutting machines.

It provides better control when aligning materials, adjusting components, or ensuring proper positioning before machine operation. This helps reduce setup errors and improve overall production efficiency.

Made from durable materials such as stainless steel or alloy steel, the guide rod offers excellent strength, corrosion resistance, and long service life. Its ergonomic design ensures comfortable handling and precise control.

The handheld guide rod is widely used in industries such as label production, packaging, adhesive tape converting, medical product manufacturing, and paper converting.

Product Features

• Easy manual guiding and positioning
• Ergonomic design for comfortable handling
• Durable and corrosion-resistant materials
• Improves setup accuracy and efficiency
• Suitable for various die cutting applications

Applications

The handheld guide rod is widely used in:

• Machine setup and alignment

• Manual positioning of components

• Material guiding assistance

• Label and packaging production

• Adhesive tape converting

• Medical dressing production

• coffee filter production

FAQ – Handheld Guide Rod

1. What is a handheld guide rod in a die cutting machine?

A handheld guide rod is a manual tool used to assist operators in guiding, aligning, and positioning machine components during setup and adjustment.

2. Why is a handheld guide rod important?

It improves accuracy during manual adjustments and helps ensure proper alignment, reducing errors and improving product quality.

3. What materials are handheld guide rods made from?

They are typically made from stainless steel or alloy materials for strength, durability, and corrosion resistance.

4. Is the handheld guide rod easy to use?

Yes, it is designed with an ergonomic structure, making it easy to handle and control during machine setup and operation.

5. Can handheld guide rods be customized?

Yes, they can be customized in length, diameter, and handle design based on specific machine requirements.

The handheld guide rod is commonly used together with Guide Shaft Assembly, Knife Adjustment Slider, and Clamping Handwheel for precise machine setup and alignment.
